Rebound (Leeb) Hardness Tester dynaROCK II
The dynaROCK II works according to the Leeb rebound hardness test method for metallic materials. It is developed and produced by BAQ GmbH.

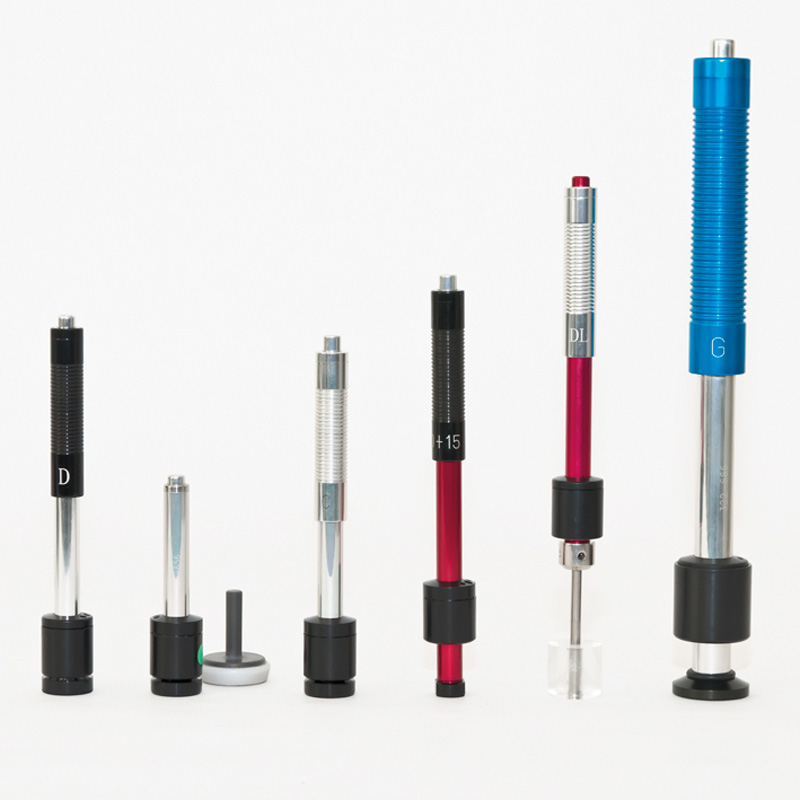

The dynaROCK II combines easy operation with high precision and reliability. For different applications, six impact device types are available. The type of the connected impact device is identified automatically.
Main Features:
- Fast and easy hardness testing
- Measuring method according to DIN 50156 and ASTM A956
- Robust metal (aluminium) casing
- Large colour display
- Embedded Li-ion battery
- 12 groups of materials
- Extensive storage and statistical functions
- USB interface and PC software
Technical Specifications:
| Hardness scale | HRC, HB, HV, HRB, HL, HS and tensile strength |
| Display | Colour LCD 320 x 240 pixels |
| Statistics | Average value, standard deviation, minimum, maximum |
| Data memory | 500,000 data records with date, time, GOOD/BAD rating and impact direction |
| Power supply | Integrated rechargeable lithium-ion battery |
| Charging | By charging adapters or by PC-USB |
| Operating time | Approx. 16 h |
| Interface | USB |
| Dimensions | 135 x 79 x 22 mm |
| Weight | 425 g incl. impact device D and cable |
| Minimum weight of the sample on stable underlay | 2 kg |
