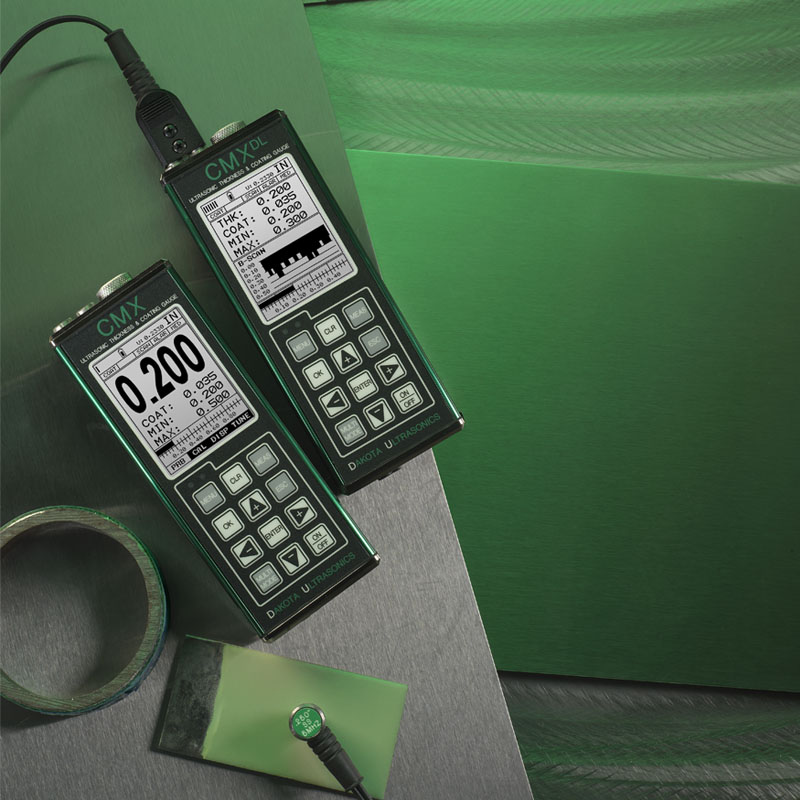

CMX Ultrasonic Coating & Wall Thickness Gauge

The CMX accurately measures coating and wall thickness on a wide range of materials. Five selectable measuring modes enable the operator to precisely measure wall thickness, coating thickness and locate corrosion and pitting—without removing the coating.

Oversized graphic LCD is backlit and features an easy to navigate menu allowing quick access to gauge settings and options.

Five user-selected operating modes are included:

Coating On: Measures wall thickness using Pulse-Echo. It separately displays wall & coating thickness.

Coating Off: Measures wall thickness using Pulse-Echo. It displays wall thickness only.

Temperature Compensated: Measures wall thickness using Pulse-Echo and automatically adjusts calibration to compensate for changes in material temperature.

Thru-Coat: Measures wall thickness only using Echo-Echo. (coating is NOT included)

Coating Only Mode (CT): (Coating Thickness) Measures from 0.0005 to 0.100 inches (0.013 to 2.540 mm). Range will vary slightly depending on the coating.

New Features in Version 2.0

High speed scan 200Hz
TDG (Time Dependent Gain)
Improved linearity tables (in all measurement modes)
110dB gain range
Setups can be backed up or restored using USB connection
Screen update rate (25Hz)
PRF (pulse repetition frequency 250Hz)
Line power available using USB-C to PC or standard power adapter

Features

Includes NIST-Traceable Calibration Certificate
Auto probe recognition with Auto Zero or Manual Zero.
Wide variety of dual-element probes can be used for nearly any application.
Bar graph with user-set start end values providing highest resolution around the target thickness value.
Differential Mode allows user to set a "target thickness value" and display will show the DIFFERENCE between actual and target thickness as a plus or minus value.
TI-CMX-H for surface temps up to 300°F/150°C. Optional hi-temp probes for higher surface temperatures offered
Adjustable Gain in 5 steps (VLow, Low, Med, Hi & VHi) in 2db increments providing a 8 db gain adjust range (42–50 db).
64 custom setups can be stored and retrieved for convenient use and labeled for easy identification
Display Hi/Lo Alarm Limits with audible and visual indicators.
2 Year Warranty for Gauge (90 days for probe)
Metal housing provides strong protection against harsh environments.
Measures Coatings up to 0.100"
IP 65 Rated
CE Certified
