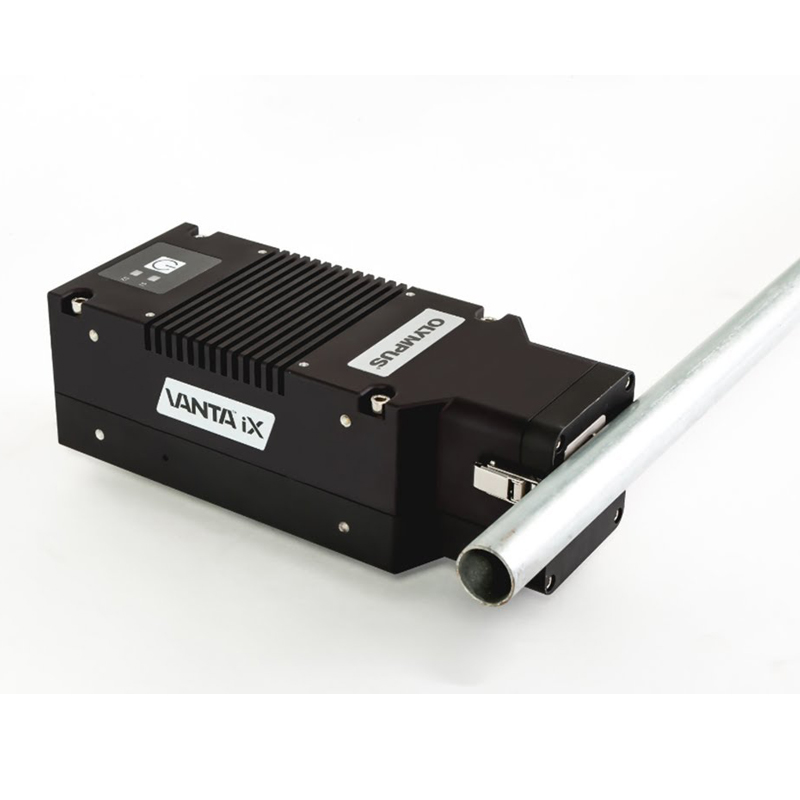

100% quality inspection of alloy tubes, rods and billets is made possible by in-line XRF analyzers, which perform automated material identification and elemental analysis on the production line. Industrial process optimisation for higher productivity and quality control is provided by continuous, round-the-clock operation.

specification:

• Excitation Source:

X-ray tube: Rh or W anode (application optimized) 5–200 μA.

MR model: 8–50 keV (4 W max).

CW model: 8–40 keV (4 W max).

• For each beam and method, eight filter positions are automatically chosen.
• Detector:

MR model: Large-area silicon drift detector.
CW model: Standard silicon drift detector.

• Element range method dependant:

MR model: Mg–U.
CW model: Ti–U (with standard window and calibration).

• Integrated barometer for automatic adjustment of air pressure and altitude.
• Weight  2.4 kg.
