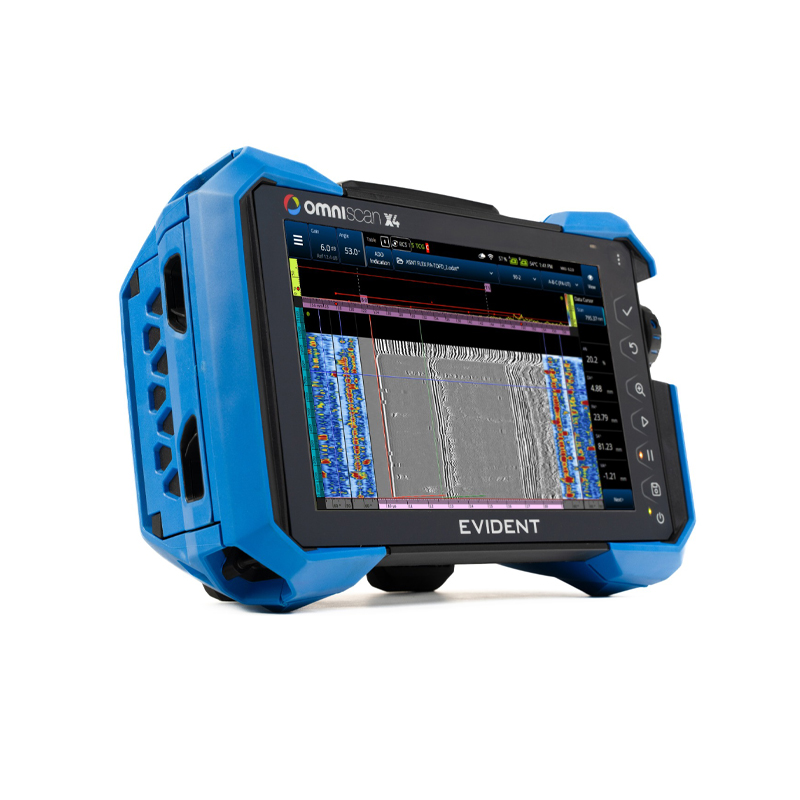

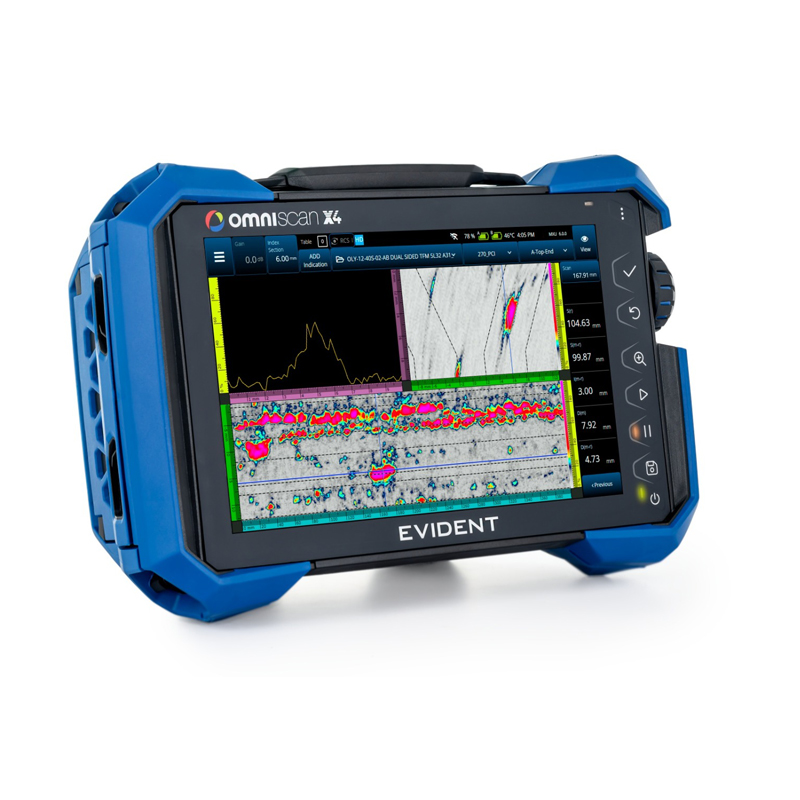

OmniScan™ X4 Flaw Detector

The OmniScan™ X4 is a high-performance multi-technology ultrasonic flaw detector designed to support advanced inspection workflows in industrial environments. Featuring Phased Array (PAUT), Total Focusing Method (TFM), Phase Coherence Imaging (PCI), and Plane Wave Imaging (PWI) technologies, the OmniScan X4 delivers accurate detection and reliable assessment of flaws and corrosion. Its powerful imaging capabilities, large storage, fast processing, and intuitive interface help inspectors make confident decisions quickly and efficiently. The system is built for speed, simplicity, and future-proof performance, with regular software updates and integration options that expand capabilities over time.

Key Features

• Multi-technology inspection toolbox: PAUT, TFM, PCI, PWI and TOFD capabilities in one device.

• Phase Coherence Imaging (PCI): Better detection of challenging flaws like hook cracks and stress corrosion cracking with clear imaging and accurate depth assessment.

• Up to 3x faster TFM: Enhanced productivity with faster TFM processing using sparse firing mode.

• Dual-sided weld inspection: Twin TFM and PCI for simultaneous inspection from both sides, ideal for long welds and seam scanning.

• Application presets: Preconfigured setups for common applications with HydroFORM™, RollerFORM™, and FlexoFORM™ scanners.

• Merged B-scan view: Efficient screening using combined B-scans for faster defect identification.

• High-capacity storage: 1 TB SSD for extended inspection data and large file handling.

• Fast processing and responsiveness: Improved CPU and RAM for near-instant operations.

• Orientation correction & 3D graphics: Accurate scan orientation and easy interpretation of results.

• Wide pulse voltage range: 5–160 Vpp for improved signal-to-noise ratio and better imaging in difficult materials.

• Future-proof software updates: Free quarterly MXU updates to enhance features and capabilities.

• Integration-ready: Compatible with OmniScan Black Box app and NDT Device API for remote control and ecosystem integration.

• 128/128PR model support: Full 128-element PA and TFM capability, with raw FMC data access for advanced applications.

• Rugged design: IP65 rating, drop-tested (MIL-STD-810G), and hot-swappable batteries for field reliability.

• Multiple configuration options: Available in 16:64PR, 16:128PR, 32:128PR, 64:128PR, and 128:128PR models.
