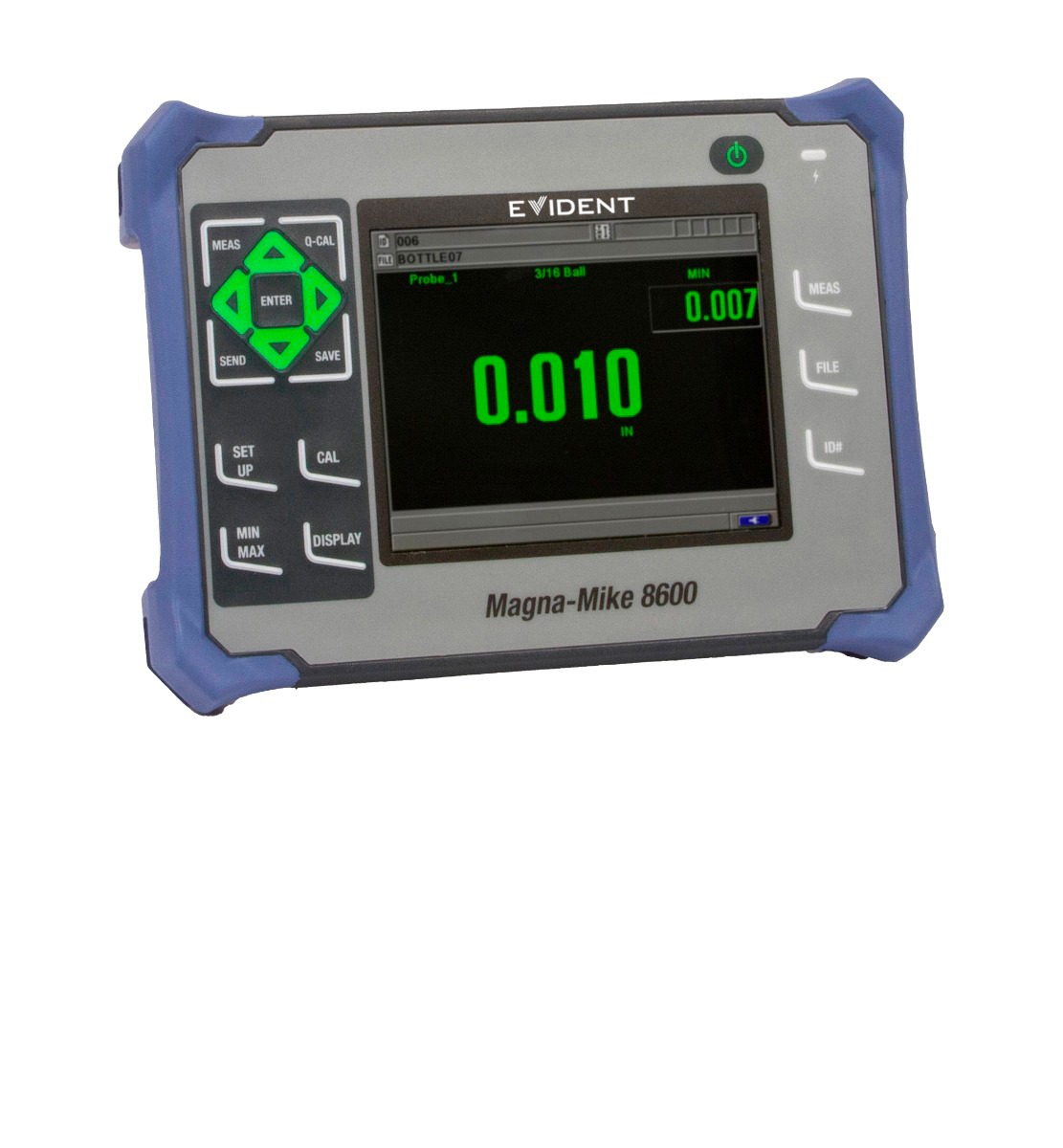

The Magna-Mike® 8600 is a portable thickness gauge that uses a simple magnetic method to provide reliable and repeatable measurements on nonferrous materials. Its operation is straightforward: measurements are taken when the magnetic probe is held or scanned on one side of the test material, while a small target ball, disk, or wire is placed on the opposite side or dropped inside a container. The probe’s Hall Effect sensor instantly measures the distance to the target, displaying a clear digital thickness reading on the large color VGA display.

Key Features:

• Three probe designs: Straight, Right Angle, and Low-Profile Articulating

• Replaceable wear caps: Standard, Chisel Tip, and Extended Wear (for 86PR-1 and 86PR-2)

• Expanded target options: 3/16" and 1/4" magnetic balls, 0.045" (1.14 mm) and 0.026" (0.66 mm) wire targets

• Expanded thickness range: Up to 25.4 mm (1.00 in.)

• High-performance display: Large color VGA display for easy readings

• Multiple outputs: RS-232, USB, and VGA

• Fast measurement rate: 60 Hz update for real-time readings

• Advanced data logging: Alphanumeric logger with ability to store and export readings to microSD in .txt and CSV formats

• Calibration kits: Standard, Extended Range, Disk, Wire Target, Low-Profile Probe kits

• Applications: Plastic and glass containers, automotive tear seams, aerospace parts, and other nonferrous materials

• Durable design: IP67 rating, MIL-STD-810G tested for vibration, shock, and dropز
