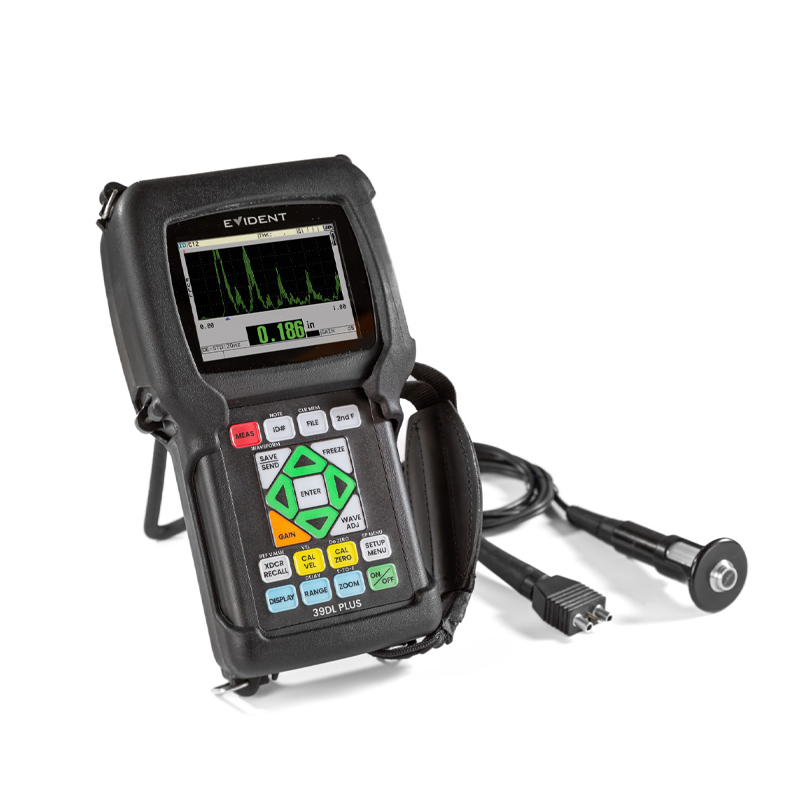

The 39DL PLUS™ is a versatile handheld ultrasonic thickness gauge engineered for precision and corrosion thickness measurements on metals, plastics, composites, glass, rubber, and ceramics. Ideal for pipes, tanks, pressure vessels, hulls, and other structures affected by corrosion or erosion, it combines high accuracy, rapid scanning, and advanced software options in a rugged, field-ready design. Featuring a color transflective VGA display, intuitive keypad, and built-in data logger, the 39DL PLUS™ enables fast, reliable measurements with seamless connectivity through Wi-Fi®, Bluetooth®, USB, and RS-232.

The gauge supports dual and single element transducers, including optional software for THRU-COAT™ technology, High Resolution, Multilayer, High Penetration, Internal Oxide/Scale, and Encoded B-scan applications. Its Automatic Probe Recognition and V-Path Builder simplify calibration and ensure precise measurements even on coated, painted, or complex surfaces. With IP67-rated rugged housing, military-tested durability, and high-temperature capability up to 500 °C (932 °F), the 39DL PLUS™ is built to perform in the toughest inspection environments.

Key Features:

• Wide thickness range: 0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer

• High accuracy: Standard resolution 0.01 mm (0.001 in.); optional High Resolution up to 0.001 mm (0.0001 in.)

• Dual element corrosion measurement: Optimized for pipes, tanks, pressure vessels, and other internally corroded structures

• THRU-COAT™ & Echo-to-Echo technology: Measures true metal thickness on painted or coated surfaces

• Temperature compensation: Automatic correction for high-temperature measurements

• Encoded B-scan: Captures thickness, waveform, and distance data for detailed scans

• Automatic Probe Recognition & V-Path Builder: Simplifies calibration for dual element transducers

• Versatile software options: High Resolution, Multilayer, High Penetration, Internal Oxide/Scale, Encoded B-scan

• Connectivity: Wi-Fi®, Bluetooth®, USB, RS-232, and microSD support for seamless data transfer

• Data logging: Stores up to 792,832 thickness readings or 20,000 waveform measurements

• Rugged & portable: IP67-rated, shock- and water-resistant, operating range –10 °C to 50 °C (14 °F to 122 °F), weight 0.83 kg (1.83 lb)

• Power supply: Lithium-ion battery (8–9.5 hours), AC/DC adapter, or 4 AA batteries with fast-charge capability.

• Includes 39DL PLUS™ gauge, AC/DC charger, test block, couplant, internal data logger, USB cable, rubber protective boot with stand and neck strap, GageView™ software, user manual, and two-year limited warranty. Transducers may be included depending on region; consult local representative.
