DAKOTA CMX10-DL FULL WAVE CAPTURE THICKNESS GAUGE

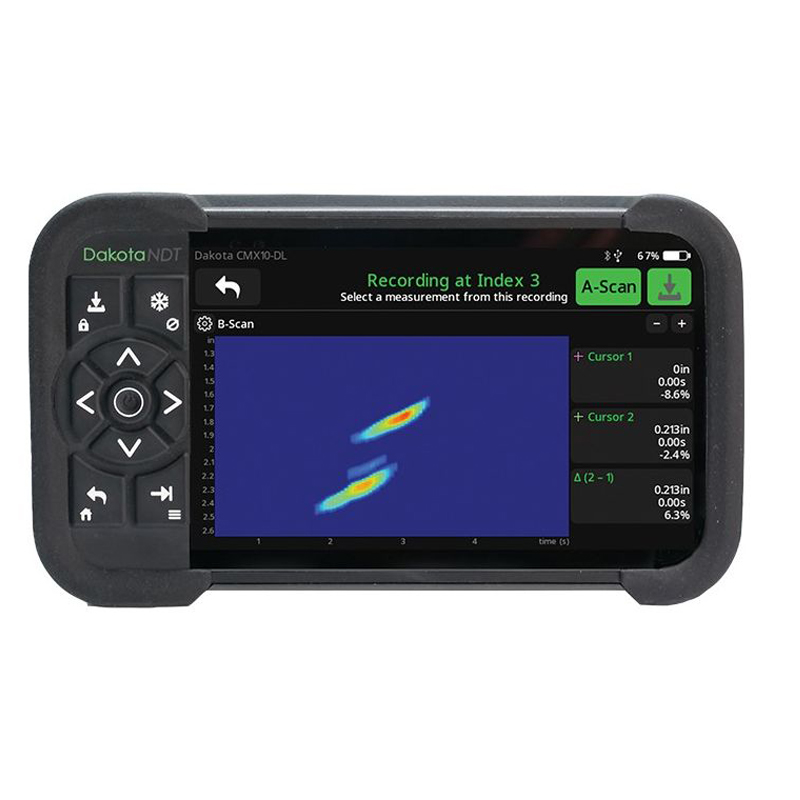

The Dakota CMX10-DL is an advanced ultrasonic thickness gauge that combines corrosion monitoring, precision thickness measurement, Full Wave Capture, A-Scan, and B-Scan capabilities in a single rugged and portable instrument. Designed for inspectors who require more than a simple thickness reading, the CMX10-DL provides complete waveform analysis, data recording, and enhanced flaw detection tools to improve inspection reliability and confidence.

With its intuitive touchscreen interface, powerful signal processing features, and comprehensive data management capabilities, the CMX10-DL is ideal for corrosion surveys, asset integrity programs, manufacturing quality control, and remaining life assessments across a wide range of industrial applications.

Key Features:

• Full Wave Capture technology with A-Scan recording and analysis for enhanced inspection traceability

• A-Scan and B-Scan display modes for visualizing material conditions, corrosion, pitting, and internal anomalies

• Time Corrected Gain (TCG) and Backwall Echo Attenuation (BEA) for improved detection of weak signals in challenging materials

• Second Layer / Cladding Measurement capability for evaluating base material and liner thickness independently

• High-resolution crack prove-up functionality using angle beam transducers for confirmation of critical flaws

• Multiple measurement modes including Pulse-Echo, Echo-Echo (ThruPaint™), Echo-Echo Verify, and dedicated 2nd Layer modes

• Full waveform recording up to 10 seconds at 20 A-Scans per second for detailed inspection review

• Up to 20,000 A-Scans stored internally or approximately 5 million scans using an external memory card

• User-friendly 5-inch color touchscreen with keypad operation for use in harsh industrial environments

• Built-in Bluetooth® and USB connectivity for data transfer and reporting

• Compatible with DakMaster™ software for instant report generation, data management, and firmware updates

• Rugged IP65-rated enclosure resistant to dust, water, and impact

• Long battery life of up to 15 hours for uninterrupted field inspections

• Supports dual element, single element contact, delay line, and angle beam transducers

• Image Collect feature allowing inspectors to upload photos or CAD drawings and navigate measurement locations directly on the instrument

• Remote viewing and screen sharing capabilities for real-time technical support and inspection review

Typical Applications

• Corrosion monitoring and thickness surveys

• Pipelines, storage tanks, pressure vessels, and process equipment

• Oil & gas, petrochemical, power generation, and marine industries

• Cladding and liner thickness assessment

• Detection of pitting, corrosion, and internal wall loss

• Manufacturing quality control and production inspection

• Remaining life assessment and asset integrity management

• Precision thickness measurement of thin and thick materials

The Dakota CMX10-DL delivers the performance of multiple inspection tools in one compact platform, providing inspectors with accurate thickness measurements, advanced waveform analysis, and comprehensive reporting capabilities for critical asset inspection programs.
